Reinforcement and Footing Section Detail with Material Specifications

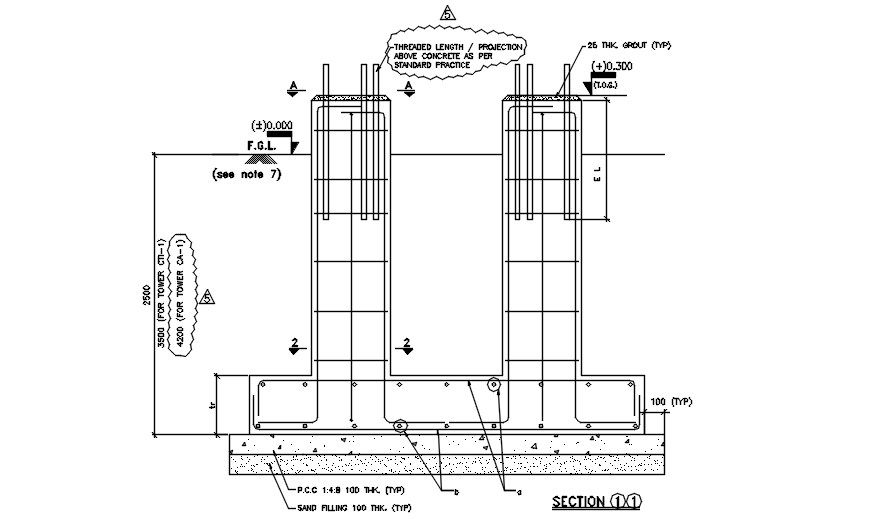

This AutoCAD DWG file provides detailed reinforcement and footing section details, essential for construction projects. The drawing includes precise dimensions for the footing, along with reinforcement specifications, such as threaded length/projection above the concrete as per standard practice. Material details for sand filling and P.C.C. (Plain Cement Concrete) are also provided. These specifications are crucial for ensuring the structural integrity of foundations and footings in construction.

Engineers and architects can use this detailed drawing to ensure that the reinforcement and material placement meet industry standards. The file contains exact measurements and construction details, making it an invaluable resource for designing reinforced footings. Download this 2D AutoCAD drawing file to gain access to comprehensive reinforcement and footing section details for your structural projects.
